- Plenum-rated 2-ch I/O box with logic, single shielded CAT5e or better for up to 500 feet maximum distance
- Alternative to standard switch boxes for impractical areas such as floor pockets or above ceilings
- 2 balanced Mic / Line / Line-Plus inputs and 2 balanced line outputs on Euroblock connectors
- 2 Logic Inputs and Outputs interface other devices to HAL with toggles or commands, such as push-to-talk or mute switches, projectors, lights, alarms, etc.
- Power on/off transient Suppression

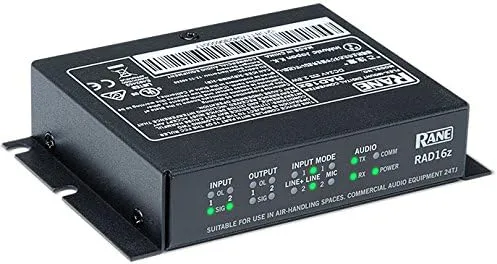

A RAD16z is an alternative to standard switchboxes for impractical areas such as in stage floor pockets or above ceilings. Its form factor is a rugged metal box with flexible surface mounting options. The RAD16z is plenum-rated UL 2043.
It contains two balanced Mic / Line / Line-Plus inputs and two balanced line outputs on Euroblock connectors. Line-Plus allows a stereo unbalanced source to connect to a single balanced input and be mono’ed. Inputs are individually software switchable to Mic, Line or Line-Plus. 24 V phantom power can be enabled in software for a condenser mic.
Two Logic Inputs and Outputs interface other devices to HAL with toggles or commands, like push-to-talk or mute switches, projectors, lights, alarms, etc. Logic In connects a device contact switch between pin 1 or 2 to ground. Logic Out is 5 V high or 0 V low.
Galvanic isolation prevents current flow between the RAD and host technical grounds from interfering with audio. The RAD16z is only available in black. Mountable to any flat surface, it measures 4.92" x 3.31" x 1.05" (12.5 x 8.4 x 2.7 cm).
